180 XT MAX Awning
$2,450.00
Unit price
/
Unavailable
180 XT MAX Awning is backordered and will ship as soon as it is back in stock.
SKU:4AXTM1
Find in Store

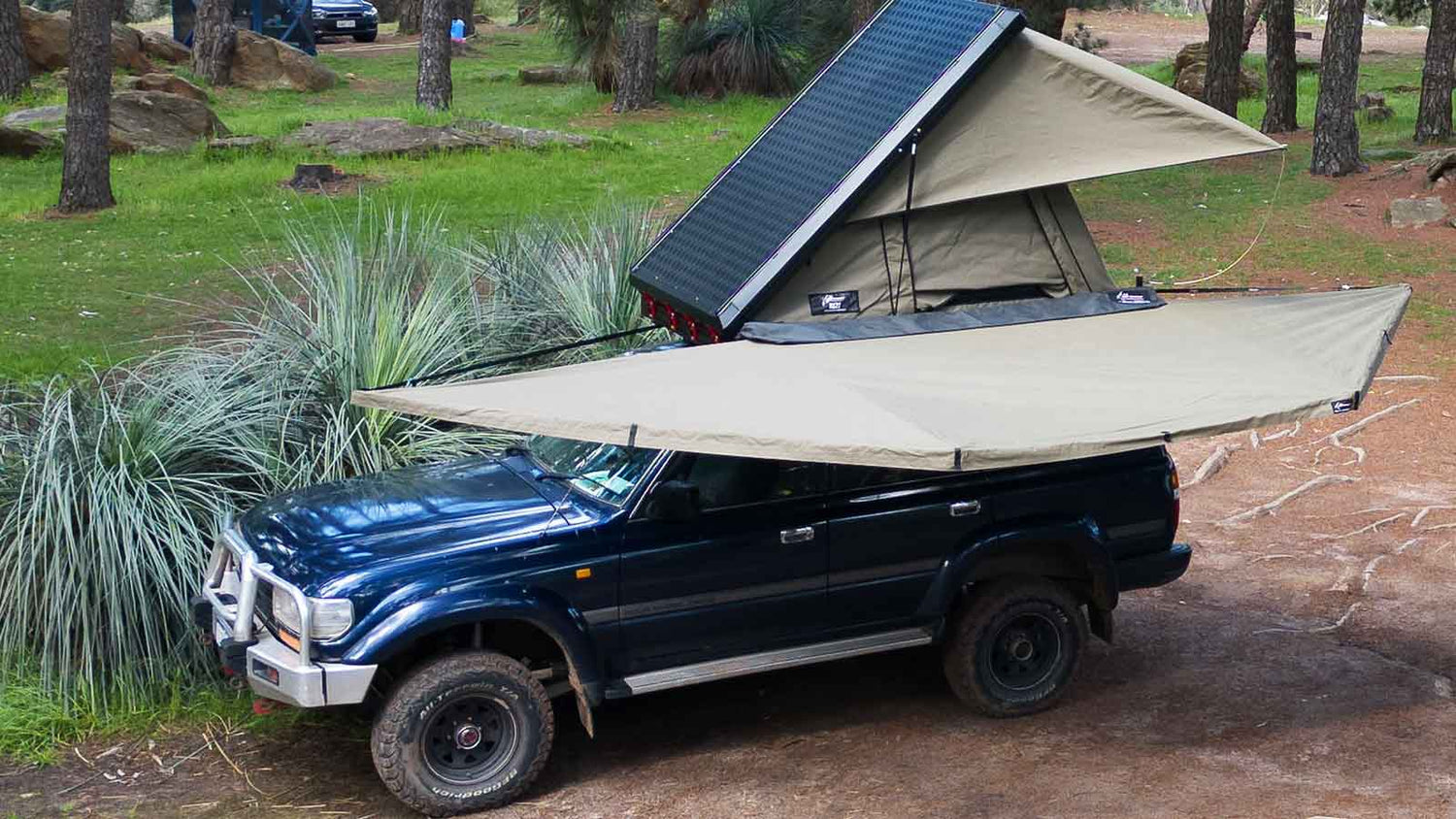

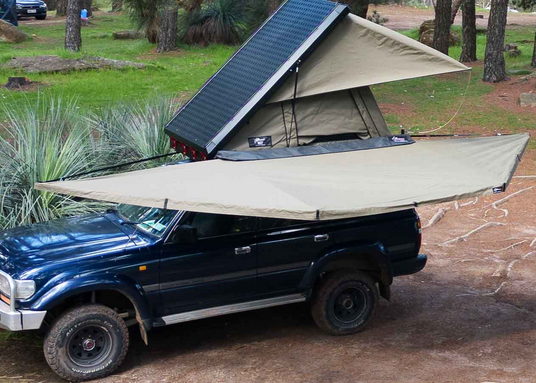

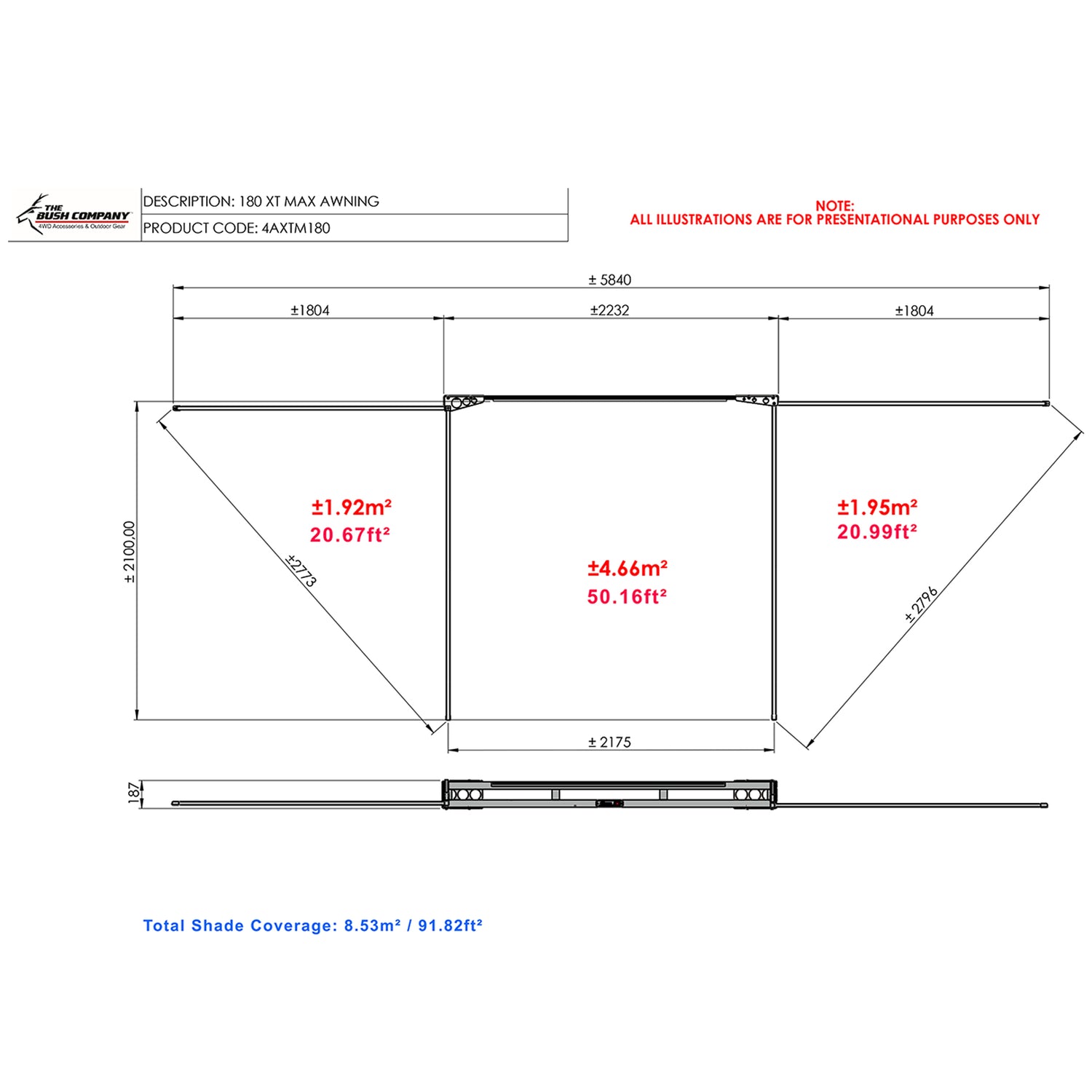

180 XT MAX: freestanding 180° awning with 8.53m² of seamless shade
The 180 XT MAX is our largest 180° awning: 8.53m² of shade across a 5.84m span, running straight down the side of your 4WD, ute or wagon. There are no poles and no seam overhead, and one person can set it up in under 30 seconds: unzip the bag, swing the arms out, then secure the tension straps on the outer arms to the vehicle to tension the canvas.

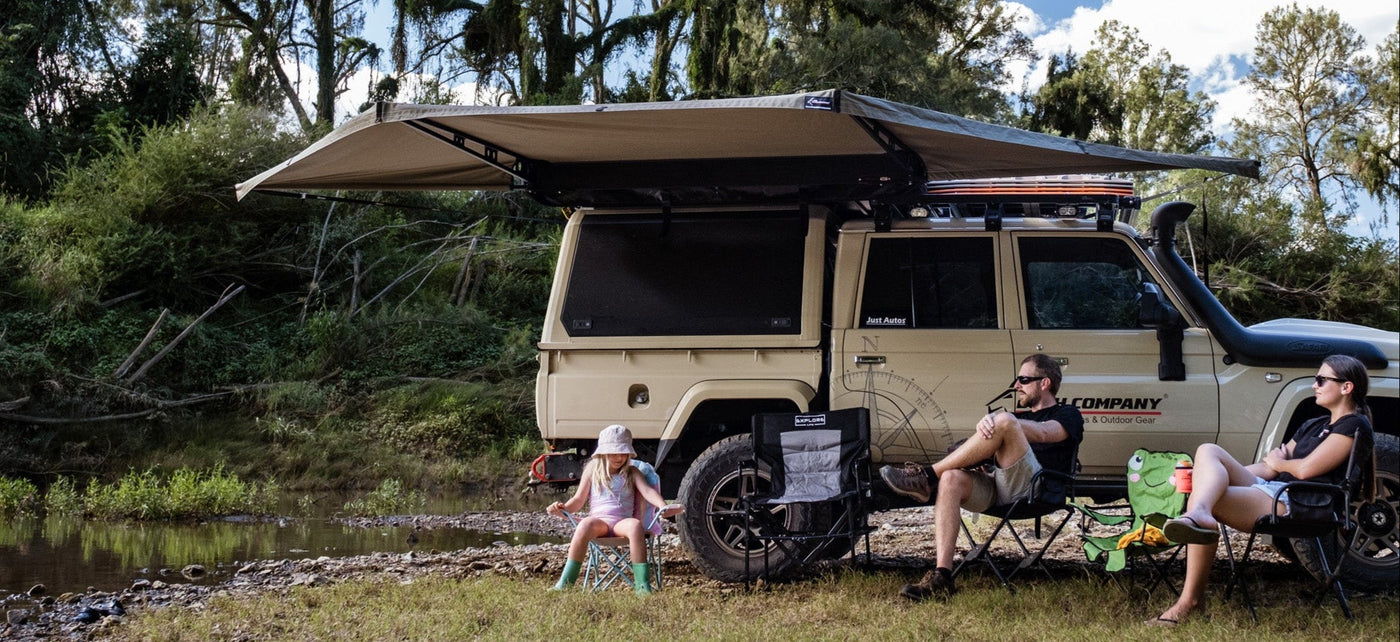

That's room for a full camp kitchen with prep space, six or more people out of the sun, swags laid end to end, or enough cover to work on the vehicle in the rain.
Why choose a 180° awning
A 180° awning keeps the back of the vehicle completely clear. There's no wrap-around arc crowding barn doors, a lift-up or drop-down tailgate, or a canopy door, so a slide-out kitchen or drop-down table at the rear stays fully usable. If you'd rather have shade wrapped round the rear as well, see our 270° awnings.

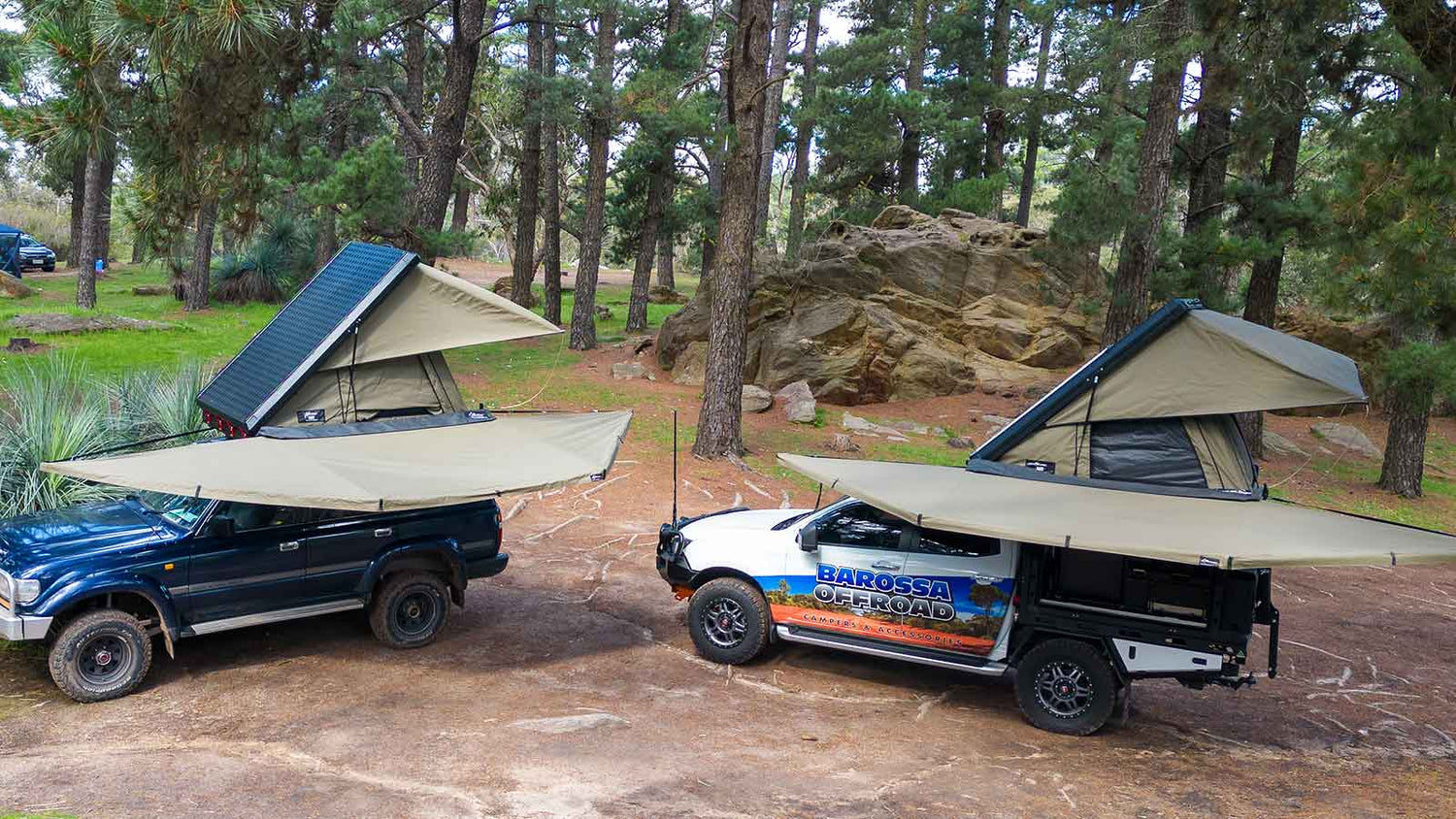

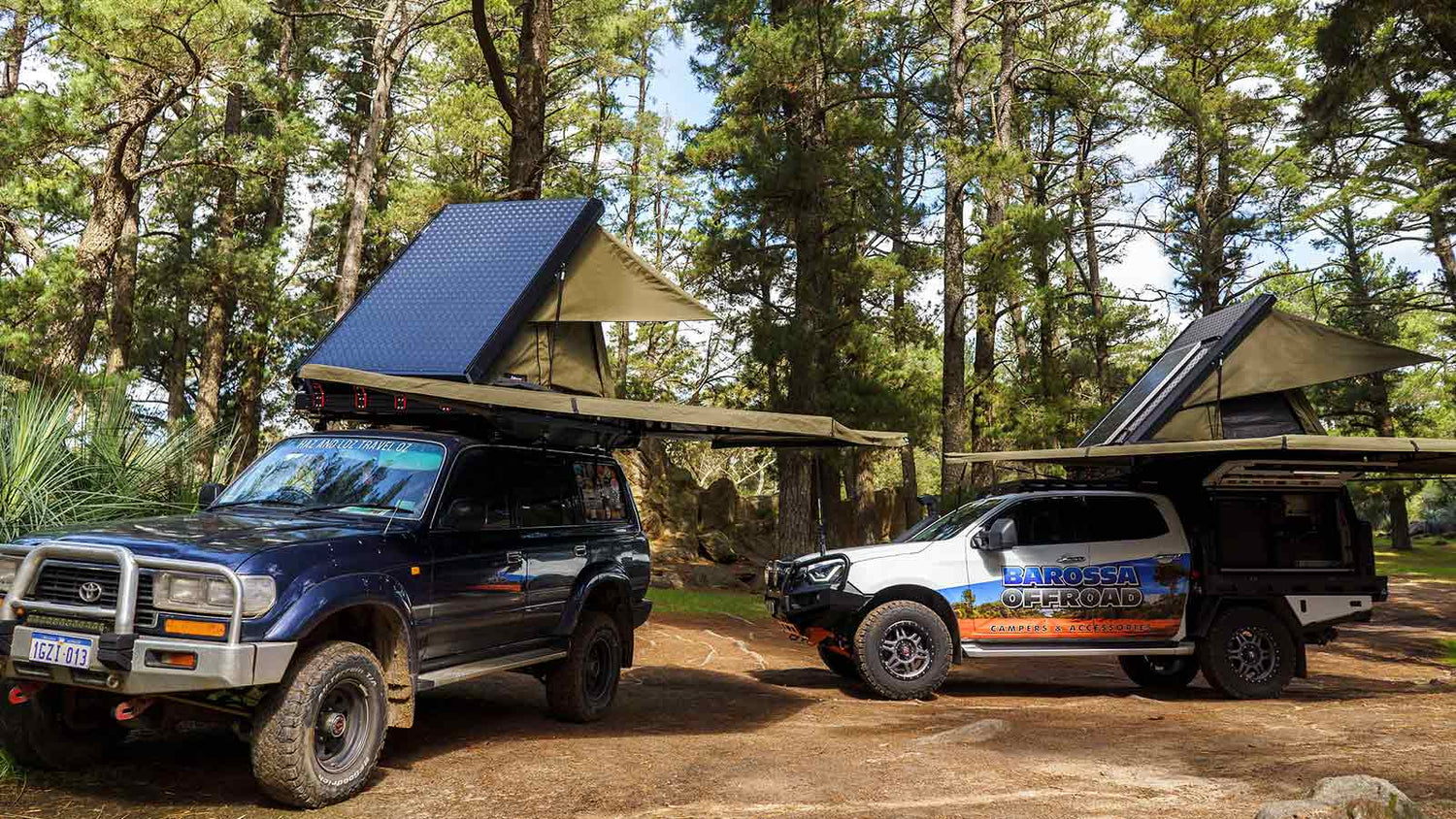

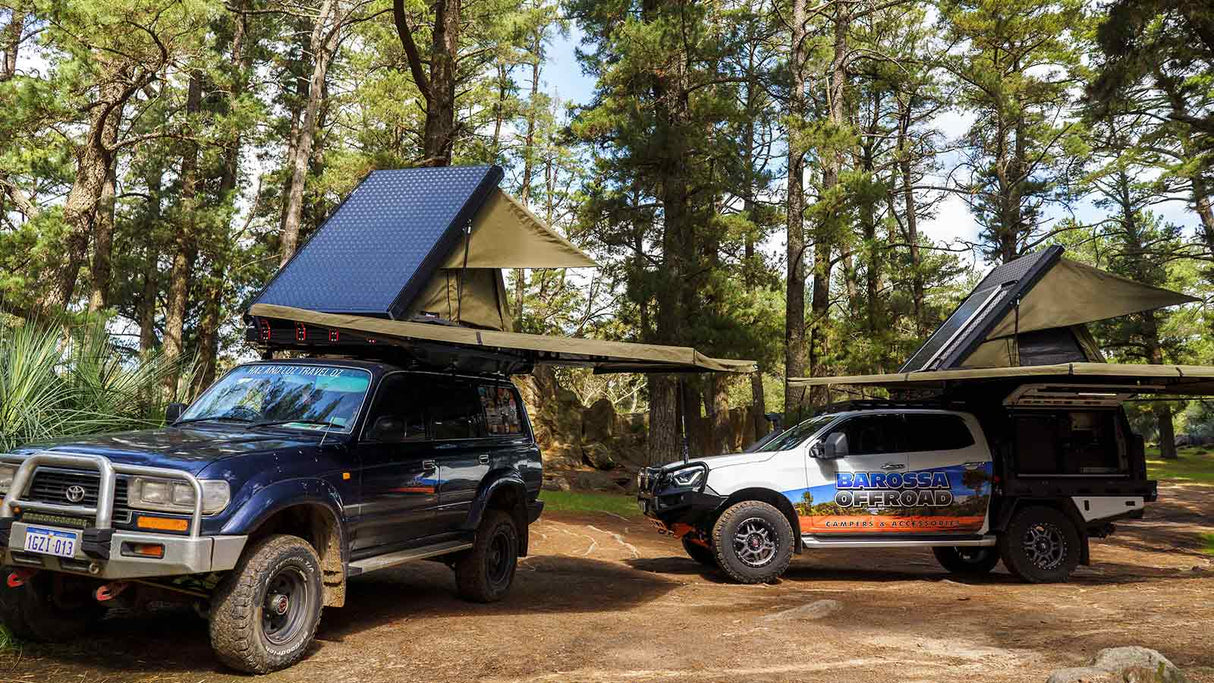

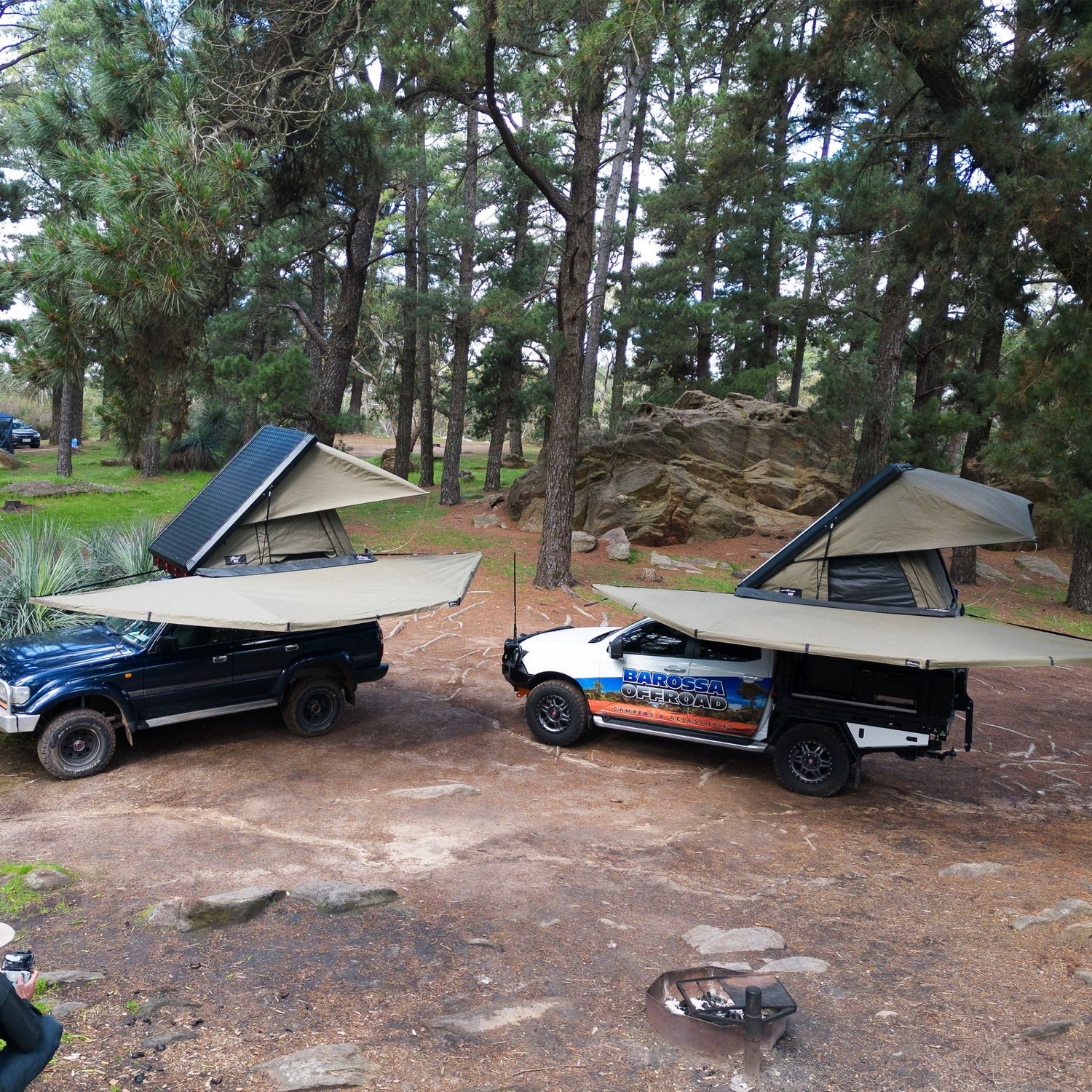

Setting up a base camp? Run two 180 XT MAX awnings, one either side of a trailer or canopy, and the whole site is covered.
One panel. No seam over your head.
Most awnings are stitched together from several canvas panels, and every stitch line is a place water can find its way through. The 180 XT MAX awning is cut from a single ultra-wide panel of 315gsm acrylic-treated polyester ripstop canvas, made on a wide loom, so there is no seam above you at all. The only stitching is where the canvas meets the frame sleeves: wet the awning down before its first trip so the core-spun thread swells and seals those stitch holes.
The canvas is tested to a waterhead of more than 1000mm (ISO 811:1981) and treated against UV, mould and mildew, for tropical downpours on the way up the Cape and long seasons of Australian sun.

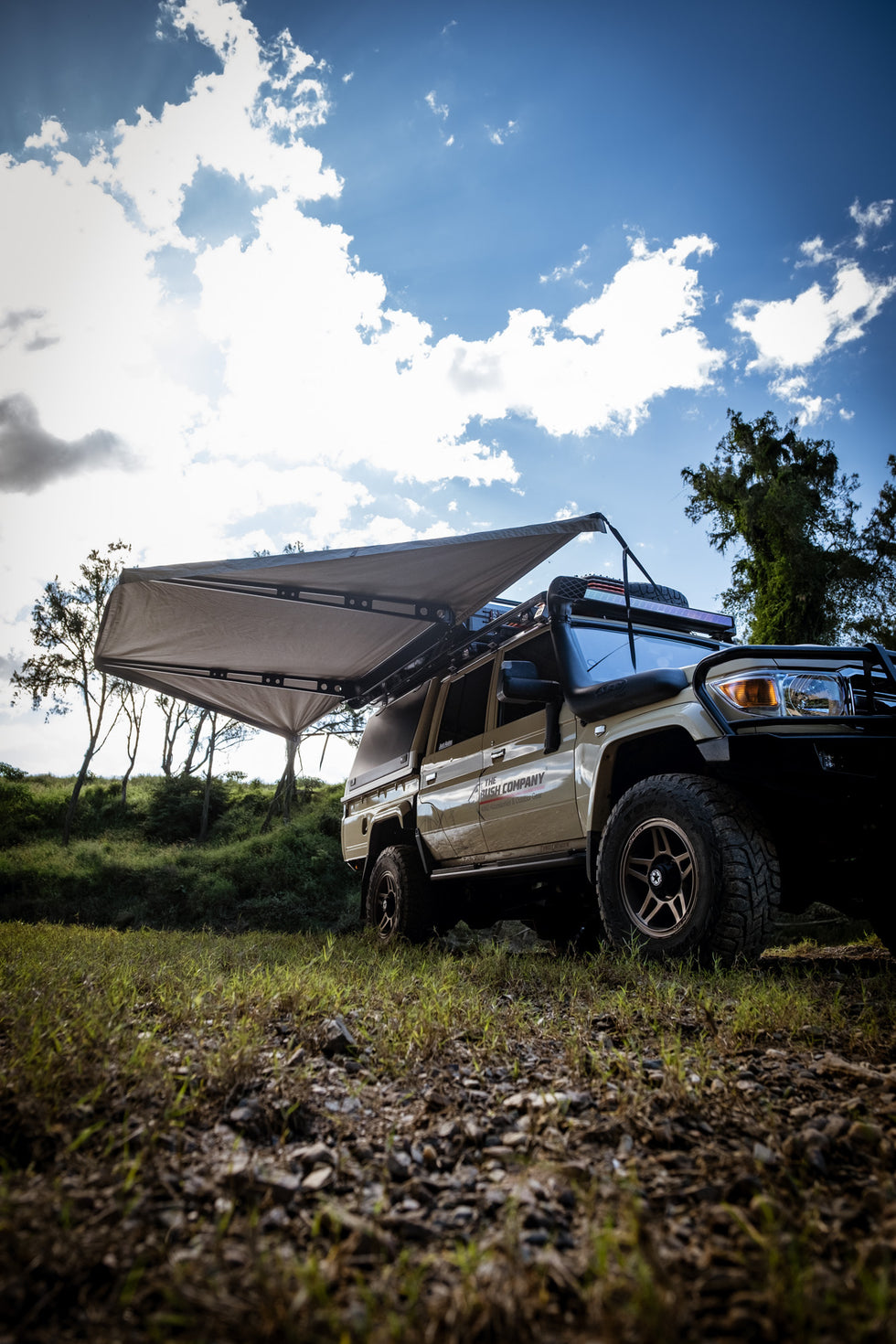

Truly freestanding, rated to 50km/h
Two fully trussed arms sit at 90° to the vehicle at each end, fully gusseted for maximum strength. The front and rear arms fold out parallel to the vehicle and are reinforced aluminium with a honeycomb cross-section along their full length, for torsional strength without extra weight.
The result is open, pole-free space underneath. There's nothing to trip over in the dark, nothing to re-peg when you move the chairs, and no trouble setting up on rock shelf, sand or hard-packed gravel where pegs won't bite. It's rated to 50km/h freestanding and to over 90km/h when poled, guyed and pegged down securely. Guy ropes and pegs are included.
Stainless steel headstocks: where the strength starts
The front and rear sections pivot on stainless steel heavy-duty headstocks that retain the stainless steel hinge pin shafts for the arms. The headstocks carry the full load of the open awning into the vehicle mounts, so this is where an awning's strength is won or lost. Stainless steel resists corrosion from salt spray, keeps the arms swinging freely through dust and corrugations, and holds its shape under load.
The rest of the hardware is built to match: B-Tech® Alloy powder-coated aluminium extrusions, double-stitched seams and reinforced stress points at every attachment. Where the ends of the arms attach to the canvas, the canvas is triple-reinforced for additional strength, because that is where most awnings fail. It's also why the 180 XT MAX doesn't need Velcro loops stitched into the canvas along the length of the arms: weaker awnings, with inferior construction and canvas, rely on them to stop the canvas tearing itself apart. It's made for salt spray on coastal runs, fine desert dust and long days on corrugations.

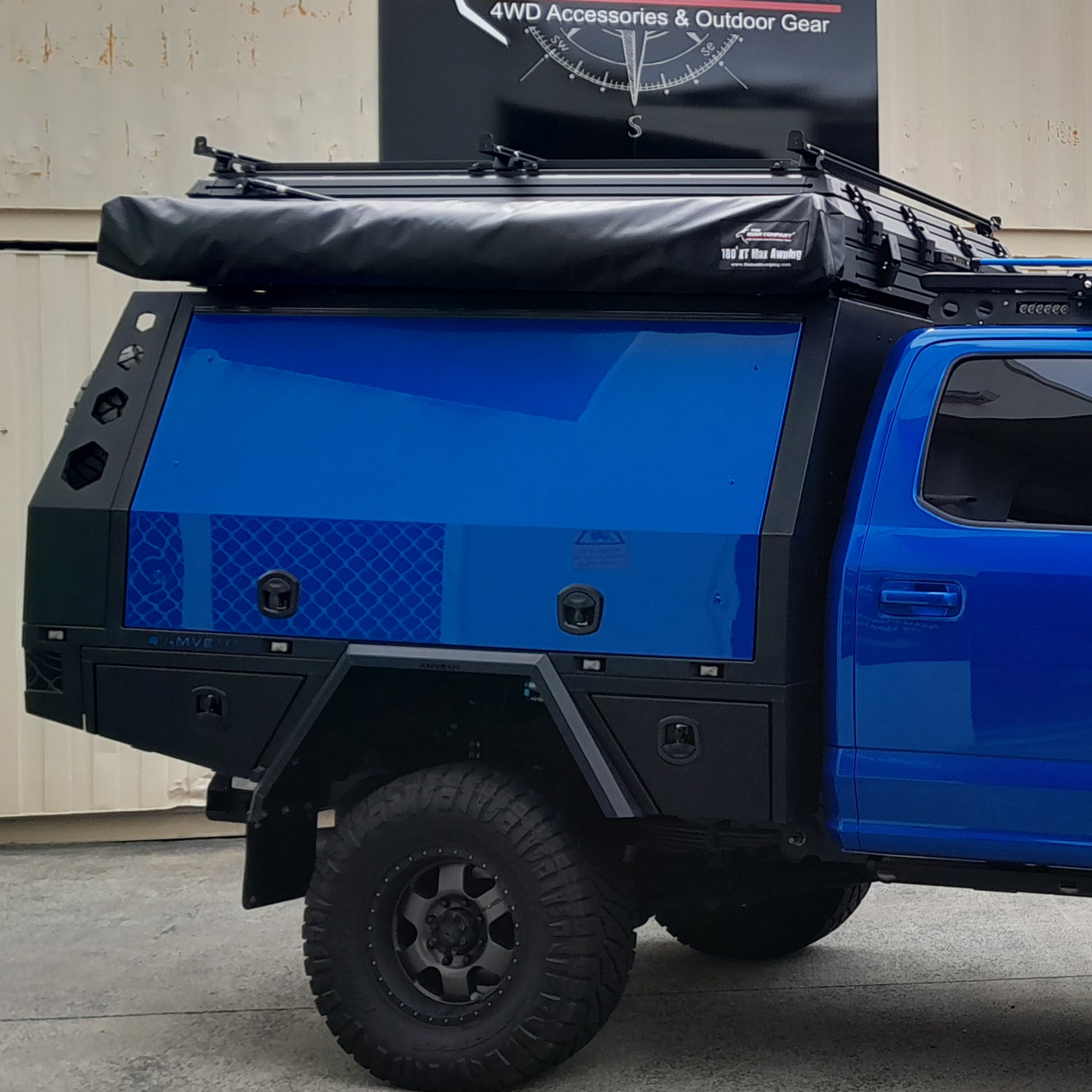

The heavy-duty PVC awning bag is UV and heat stabilised and generously sized, so the canvas goes back in easily even when it's wet or dusty.

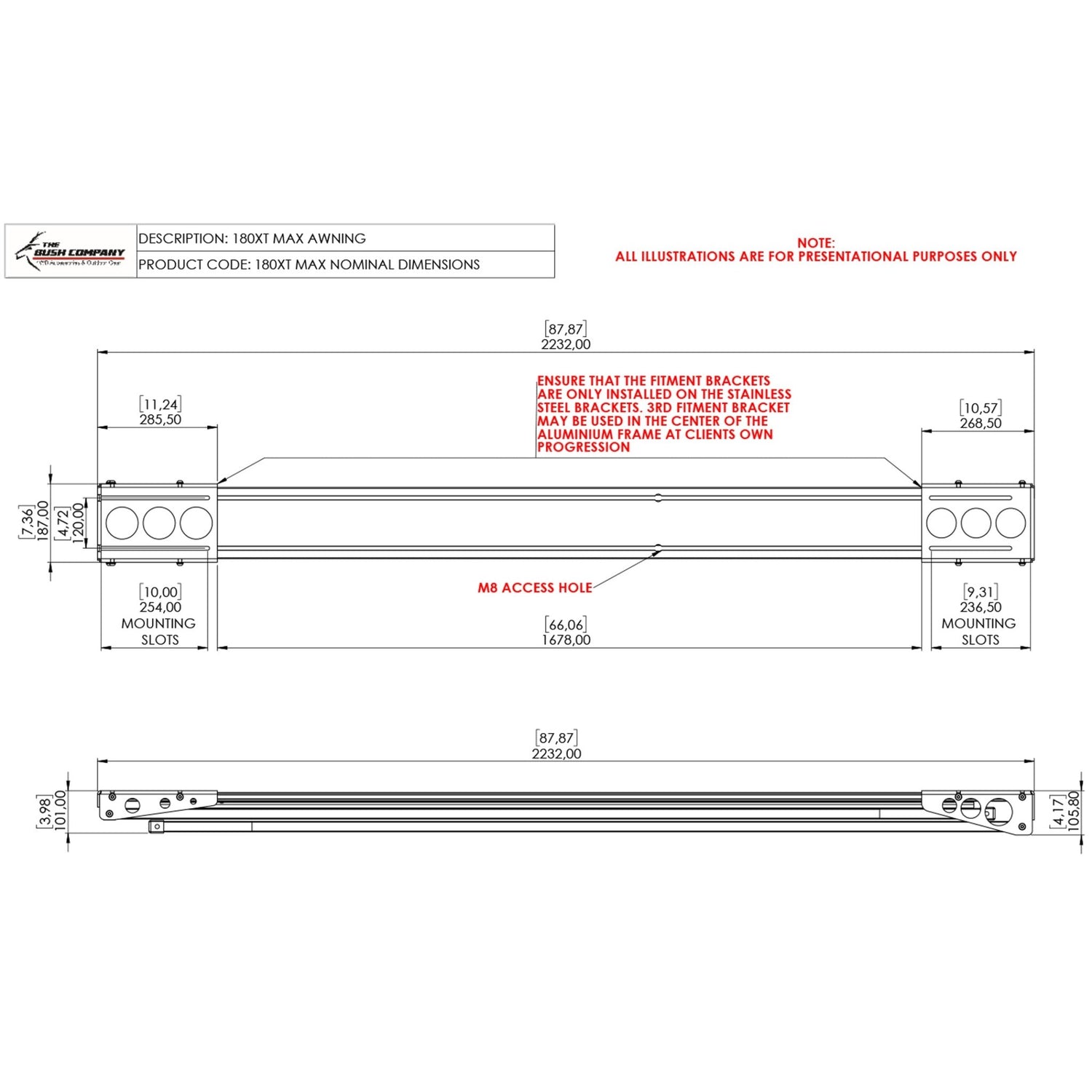

Fitting it to your vehicle

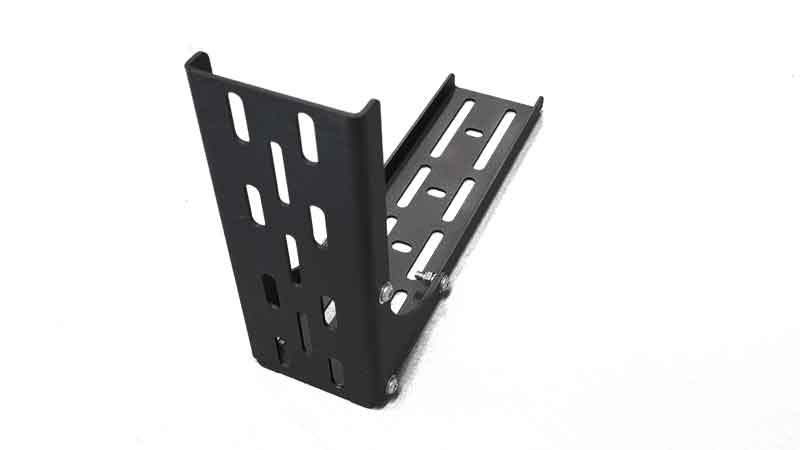

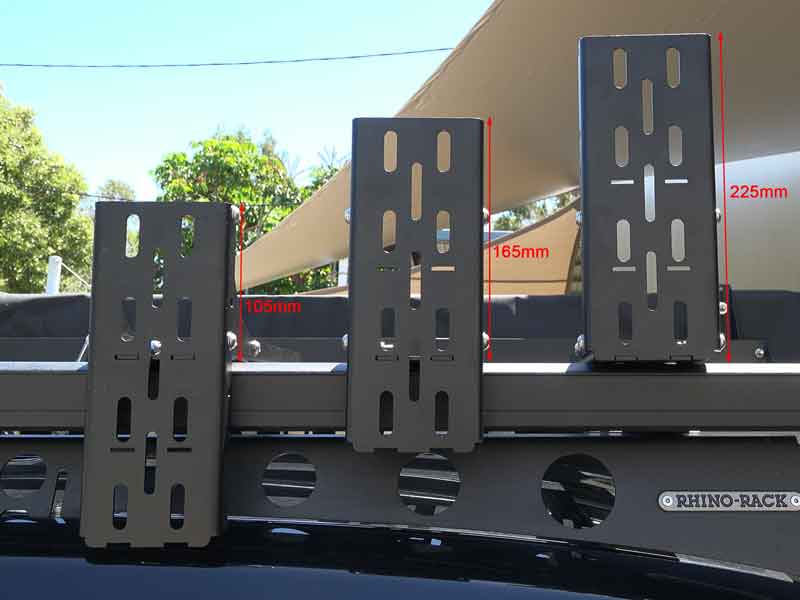

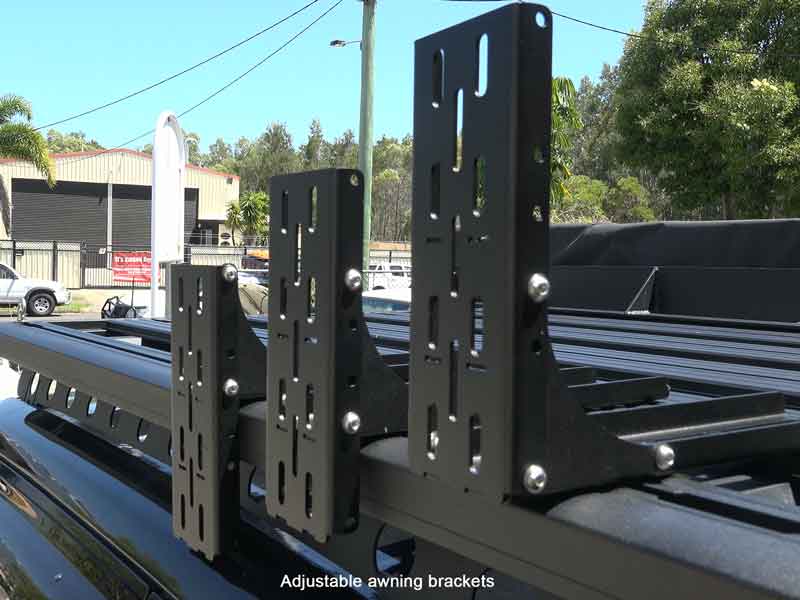

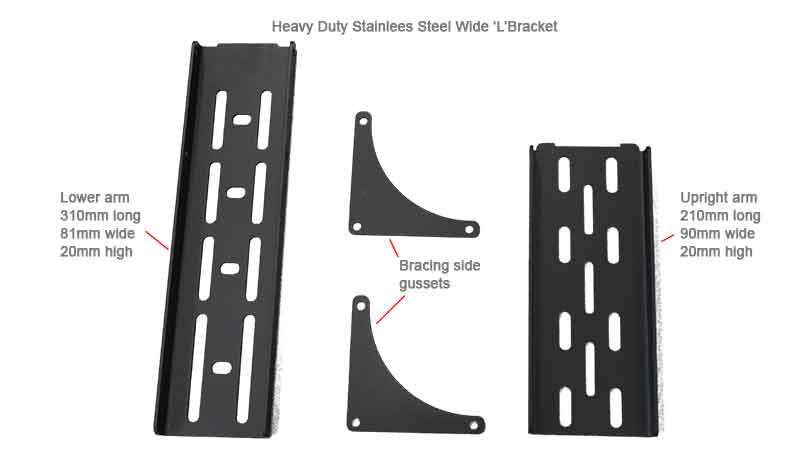

The 180 XT MAX comes with three height adjustable heavy-duty stainless steel L brackets. An L bracket must be mounted to the stainless steel headstock at each end of the awning, so you need at least 1.8m between those two mounting points on your rack, canopy or load bars. The third bracket is only needed when mounting to load bars or a roof rack, not a rooftop tent, and normally goes towards the centre of the awning. Packed, it's 2300mm long × 230mm high, and the frame is 170mm wide.
It weighs 26.5kg. As with any roof-mounted gear, add up the awning, brackets, rack and anything else you carry up top, and confirm the total sits within your vehicle's dynamic roof load rating.

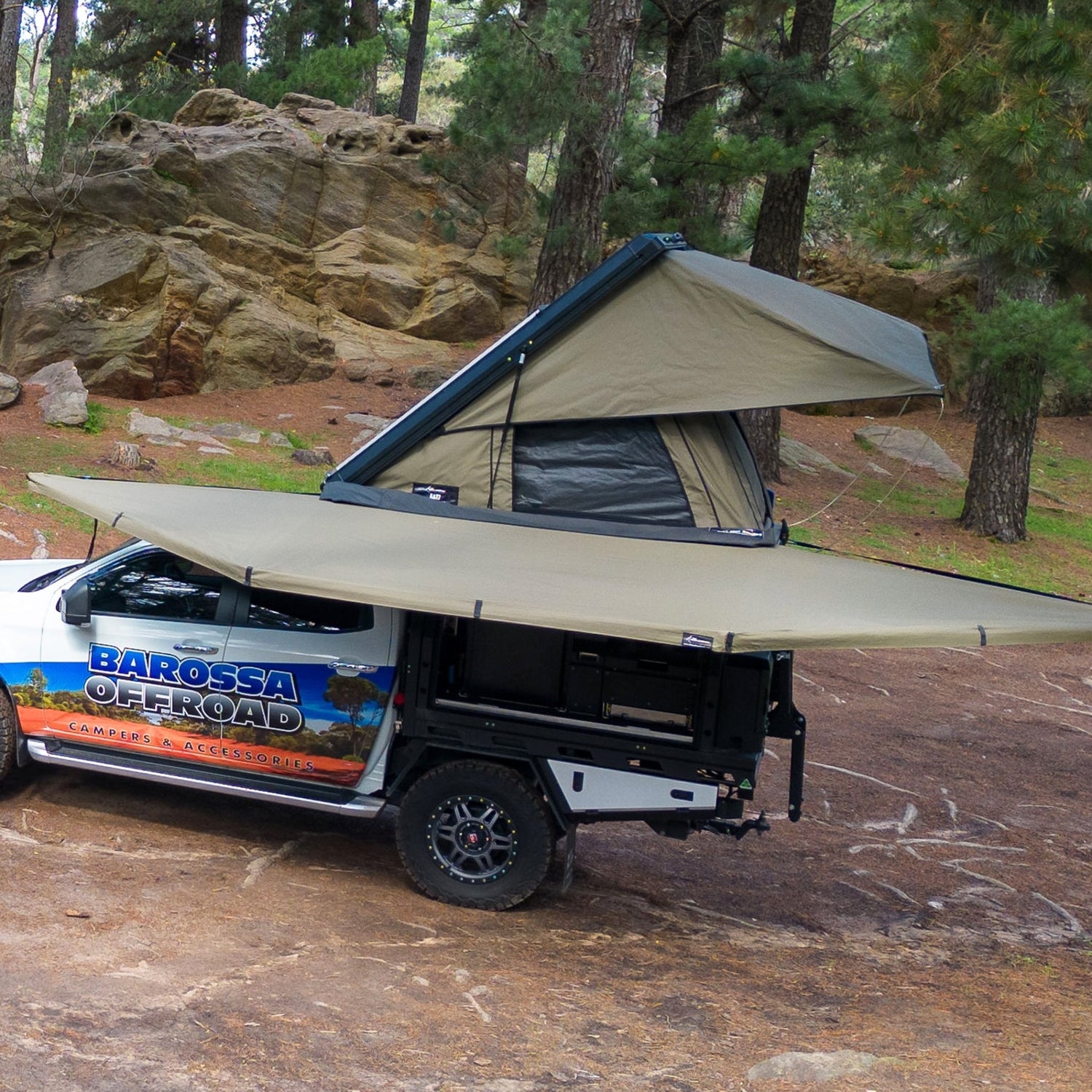

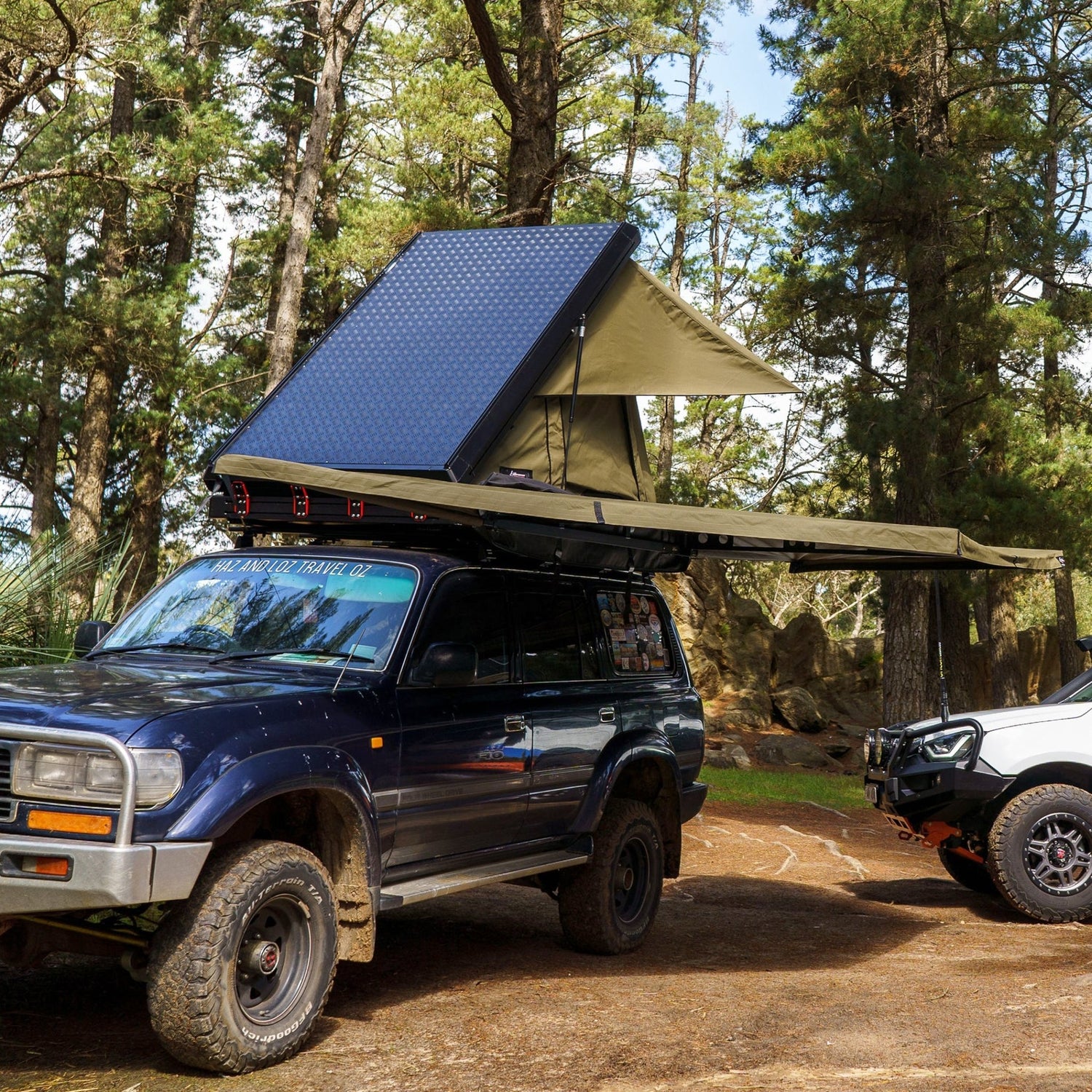

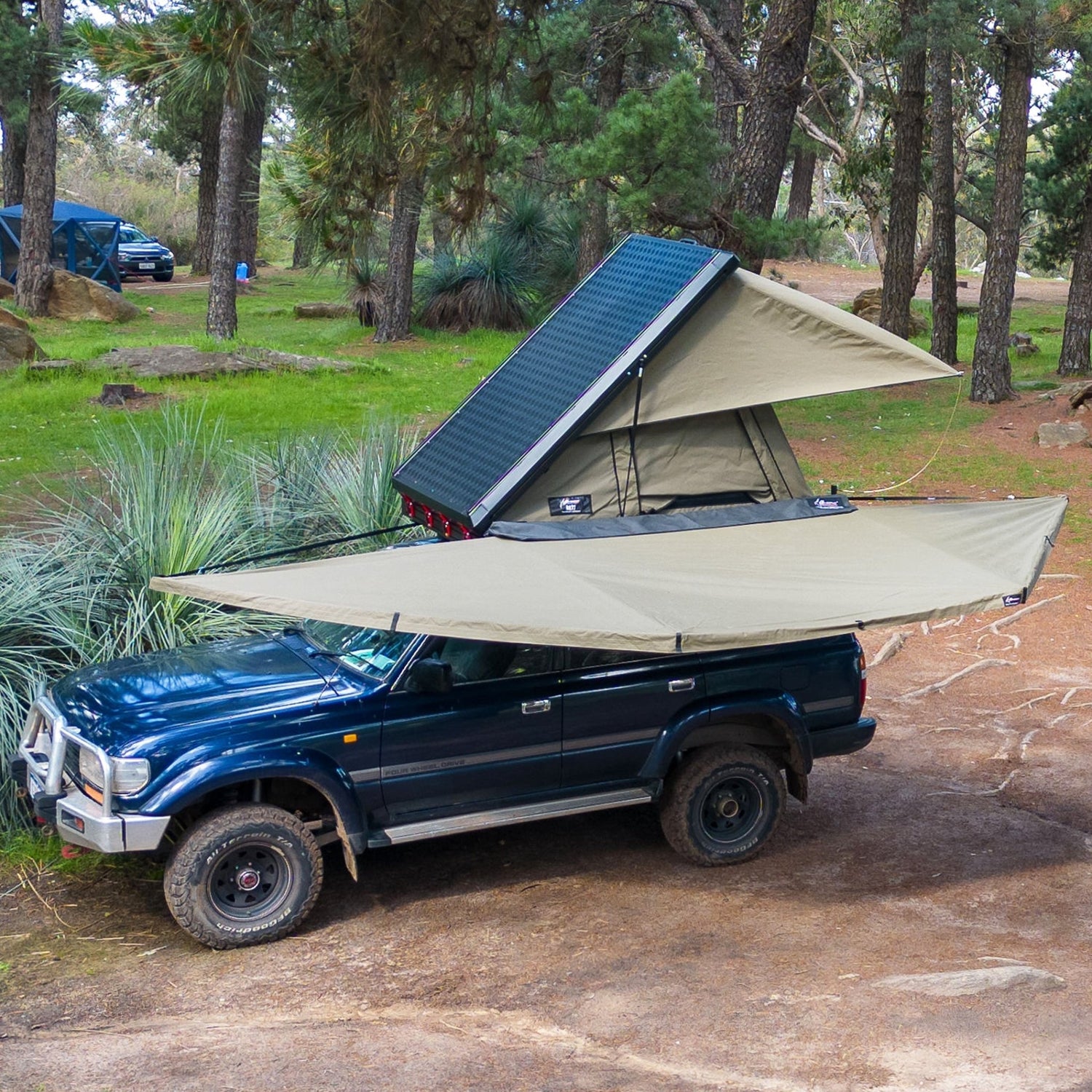

Running a Bush Company rooftop tent? The optional Awning-to-Tent brackets mount the awning straight to an AX27, LX27 Gen 2, TX27 or TX27 MAX rooftop tent for a low, tidy roofline.
Add walls when you need them
A 50mm strip of genuine Velcro® brand loop runs the entire length of the valance around the outside edge of the awning. It's rated to hold 3kg per 50mm length, so it's ideal for securing awning walls. Using Velcro rather than a zip along the awning also means there's no zip to rub against the canvas when the awning is packed tightly away in transit. Add the 180 XT MAX Wall Kit for a fully enclosed room with somewhere dry to cook when the weather closes in, or start with one canvas wall or mesh wall as a windbreak or privacy screen. The single walls have full-length YKK spiral zips on both sides, so you can zip canvas and mesh walls together to increase coverage as required.
Usage guidance
- In windy conditions, use the supplied guy ropes and pegs on the non-trussed arms to prevent upward movement.
- In heavy rain, run guy ropes off 1-tonne webbing straps between the arms to shed water and reduce the risk of pooling.
- Lubricate the hinge pins in the headstocks regularly to keep the arms moving freely, especially if you use the awning often in salty coastal conditions.
- Don't leave it up in snow: the weight stretches the canvas.
- Wet the canvas down thoroughly before first use.
We aim to offer our customer's the most competitive rates for shipping based on the items ordered. Shipping rates at checkout are calculated automatically based on items order and shipping address. All shipping rates automatically include in-transit insurance from the time of collection to delivery.
Freight Partners Used
Australia Post- orders not including items over 1.05m and/or 20Kg in Australia and overseas.
FEDEX - courier delivery to home, business or depot within Australia & Overseas
DHL Express- courier delivery for international order with items over 1.05m or 20Kg
Home Delivery
If you provide a residential address for delivery of your order it is assumed that your items can left in a safe place at your home if nobody ia available to receive them in person, in which case, The Bush Company is not accountable for any loss once delivery is made.
Pickup In-Store
To save on shipping costs you can select "Pickup In-Store" during checkout.
All items, including CapRax Canopies by Rhinoman, are available for collection from our showroom at The Bush Company, 14 Cessna Street, Marcoola, QLD 4564. In-stock orders are usually ready for collection the same day. We will contact you to confirm when your order is ready to collect.
Please note that due to insurance and health and safety issues, you cannot self-fit your purchase on our premises.
International Delivery
Freight costs for international orders are calculated excluding customs duties and local sales taxes. The receiver will be required to cover the costs of local import duties and sales taxes. International delivery is available through our website fro all items excluding rooftop tents, awnings and ute canopies. To obtain a freight quote for the delivery of these items overseas please contact please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948.
Large Items (Courier Delivery Tents & Canopies)
Home Delivery
’Home Delivery ’ means a home or private residence, including locations where a business is operated from the home or private residence. For home delivery of rooftop tents and canopies a forklift must be available at the delivery point and truck access. We will contact you to confirm that his is the case. Unloading by hand is not permitted by the couriers due to health and safety regulations. If, as is usually the case, you do not have a forklift available at your home address, we can arrange for your tent or canopy to be delivered to the nearest FEDEX freight depot/agent for collection from there.
Business Delivery
If you provide a commercial premises address for the delivery of your rooftop tent or canopy, a forklift must be available at the delivery point and truck access. Unloading by hand is not permitted by the couriers due to health and safety regulations.
Depot Collection
If you want to have you items delivery to a depot for you to collect (often the cheapest option for tents and canopies) but you are unsure of the nearest depot please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948 to obtain a shipping quote and place your order.
If you have any questions regarding shipping, please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948.
Damage In Transit
If you or the person responsible for receiving your order does not check that the item has arrived in good condition prior to accepting it, The Bush Company cannot be held responsible for any claim for damage in transit.
When your order shipment arrives, it is essential that you check it thoroughly for any signs of damage before signing to accept the shipment. This means checking the exterior box and if there are any signs of damage externally then the box should be opened, and the product examined for any signs of damage to the product itself. This needs to be done before you sign anything to say that the item has been received, the driver needs to wait until you are satisfied. If you are not satisfied with the condition of the item, then you are entitled to refuse delivery and the courier will have to return the product to us.
If you do not follow this procedure and it turns out that the item has been damaged in transit, then there is no way for The Bush Company to claim on the freight insurance to cover any damage. If you sign anything and are not satisfied you must ensure that this is noted by the driver in writing and obtain a copy that is signed by the driver.
Merchandise Shipping
Our merchandise range (T-shirts, Hoodies, Hats, Mugs etc.) are print on demand products and have different shipping policies associated with them. Please view the 'Delivery & Returns' tab on each product for more information.
Description
Description
180 XT MAX: freestanding 180° awning with 8.53m² of seamless shade
The 180 XT MAX is our largest 180° awning: 8.53m² of shade across a 5.84m span, running straight down the side of your 4WD, ute or wagon. There are no poles and no seam overhead, and one person can set it up in under 30 seconds: unzip the bag, swing the arms out, then secure the tension straps on the outer arms to the vehicle to tension the canvas.
That's room for a full camp kitchen with prep space, six or more people out of the sun, swags laid end to end, or enough cover to work on the vehicle in the rain.
Why choose a 180° awning
A 180° awning keeps the back of the vehicle completely clear. There's no wrap-around arc crowding barn doors, a lift-up or drop-down tailgate, or a canopy door, so a slide-out kitchen or drop-down table at the rear stays fully usable. If you'd rather have shade wrapped round the rear as well, see our 270° awnings.
Setting up a base camp? Run two 180 XT MAX awnings, one either side of a trailer or canopy, and the whole site is covered.
One panel. No seam over your head.
Most awnings are stitched together from several canvas panels, and every stitch line is a place water can find its way through. The 180 XT MAX awning is cut from a single ultra-wide panel of 315gsm acrylic-treated polyester ripstop canvas, made on a wide loom, so there is no seam above you at all. The only stitching is where the canvas meets the frame sleeves: wet the awning down before its first trip so the core-spun thread swells and seals those stitch holes.
The canvas is tested to a waterhead of more than 1000mm (ISO 811:1981) and treated against UV, mould and mildew, for tropical downpours on the way up the Cape and long seasons of Australian sun.
Truly freestanding, rated to 50km/h
Two fully trussed arms sit at 90° to the vehicle at each end, fully gusseted for maximum strength. The front and rear arms fold out parallel to the vehicle and are reinforced aluminium with a honeycomb cross-section along their full length, for torsional strength without extra weight.
The result is open, pole-free space underneath. There's nothing to trip over in the dark, nothing to re-peg when you move the chairs, and no trouble setting up on rock shelf, sand or hard-packed gravel where pegs won't bite. It's rated to 50km/h freestanding and to over 90km/h when poled, guyed and pegged down securely. Guy ropes and pegs are included.
Stainless steel headstocks: where the strength starts
The front and rear sections pivot on stainless steel heavy-duty headstocks that retain the stainless steel hinge pin shafts for the arms. The headstocks carry the full load of the open awning into the vehicle mounts, so this is where an awning's strength is won or lost. Stainless steel resists corrosion from salt spray, keeps the arms swinging freely through dust and corrugations, and holds its shape under load.
The rest of the hardware is built to match: B-Tech® Alloy powder-coated aluminium extrusions, double-stitched seams and reinforced stress points at every attachment. Where the ends of the arms attach to the canvas, the canvas is triple-reinforced for additional strength, because that is where most awnings fail. It's also why the 180 XT MAX doesn't need Velcro loops stitched into the canvas along the length of the arms: weaker awnings, with inferior construction and canvas, rely on them to stop the canvas tearing itself apart. It's made for salt spray on coastal runs, fine desert dust and long days on corrugations.
The heavy-duty PVC awning bag is UV and heat stabilised and generously sized, so the canvas goes back in easily even when it's wet or dusty.
Fitting it to your vehicle
The 180 XT MAX comes with three height adjustable heavy-duty stainless steel L brackets. An L bracket must be mounted to the stainless steel headstock at each end of the awning, so you need at least 1.8m between those two mounting points on your rack, canopy or load bars. The third bracket is only needed when mounting to load bars or a roof rack, not a rooftop tent, and normally goes towards the centre of the awning. Packed, it's 2300mm long × 230mm high, and the frame is 170mm wide.
It weighs 26.5kg. As with any roof-mounted gear, add up the awning, brackets, rack and anything else you carry up top, and confirm the total sits within your vehicle's dynamic roof load rating.
Running a Bush Company rooftop tent? The optional Awning-to-Tent brackets mount the awning straight to an AX27, LX27 Gen 2, TX27 or TX27 MAX rooftop tent for a low, tidy roofline.
Add walls when you need them
A 50mm strip of genuine Velcro® brand loop runs the entire length of the valance around the outside edge of the awning. It's rated to hold 3kg per 50mm length, so it's ideal for securing awning walls. Using Velcro rather than a zip along the awning also means there's no zip to rub against the canvas when the awning is packed tightly away in transit. Add the 180 XT MAX Wall Kit for a fully enclosed room with somewhere dry to cook when the weather closes in, or start with one canvas wall or mesh wall as a windbreak or privacy screen. The single walls have full-length YKK spiral zips on both sides, so you can zip canvas and mesh walls together to increase coverage as required.
Usage guidance
- In windy conditions, use the supplied guy ropes and pegs on the non-trussed arms to prevent upward movement.
- In heavy rain, run guy ropes off 1-tonne webbing straps between the arms to shed water and reduce the risk of pooling.
- Lubricate the hinge pins in the headstocks regularly to keep the arms moving freely, especially if you use the awning often in salty coastal conditions.
- Don't leave it up in snow: the weight stretches the canvas.
- Wet the canvas down thoroughly before first use.
Specifications
Specifications
Installation
Installation
Care & Maintenance
Care & Maintenance
Shipping
Shipping
We aim to offer our customer's the most competitive rates for shipping based on the items ordered. Shipping rates at checkout are calculated automatically based on items order and shipping address. All shipping rates automatically include in-transit insurance from the time of collection to delivery.
Freight Partners Used
Australia Post- orders not including items over 1.05m and/or 20Kg in Australia and overseas.
FEDEX - courier delivery to home, business or depot within Australia & Overseas
DHL Express- courier delivery for international order with items over 1.05m or 20Kg
Home Delivery
If you provide a residential address for delivery of your order it is assumed that your items can left in a safe place at your home if nobody ia available to receive them in person, in which case, The Bush Company is not accountable for any loss once delivery is made.
Pickup In-Store
To save on shipping costs you can select "Pickup In-Store" during checkout.
All items, including CapRax Canopies by Rhinoman, are available for collection from our showroom at The Bush Company, 14 Cessna Street, Marcoola, QLD 4564. In-stock orders are usually ready for collection the same day. We will contact you to confirm when your order is ready to collect.
Please note that due to insurance and health and safety issues, you cannot self-fit your purchase on our premises.
International Delivery
Freight costs for international orders are calculated excluding customs duties and local sales taxes. The receiver will be required to cover the costs of local import duties and sales taxes. International delivery is available through our website fro all items excluding rooftop tents, awnings and ute canopies. To obtain a freight quote for the delivery of these items overseas please contact please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948.
Large Items (Courier Delivery Tents & Canopies)
Home Delivery
’Home Delivery ’ means a home or private residence, including locations where a business is operated from the home or private residence. For home delivery of rooftop tents and canopies a forklift must be available at the delivery point and truck access. We will contact you to confirm that his is the case. Unloading by hand is not permitted by the couriers due to health and safety regulations. If, as is usually the case, you do not have a forklift available at your home address, we can arrange for your tent or canopy to be delivered to the nearest FEDEX freight depot/agent for collection from there.
Business Delivery
If you provide a commercial premises address for the delivery of your rooftop tent or canopy, a forklift must be available at the delivery point and truck access. Unloading by hand is not permitted by the couriers due to health and safety regulations.
Depot Collection
If you want to have you items delivery to a depot for you to collect (often the cheapest option for tents and canopies) but you are unsure of the nearest depot please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948 to obtain a shipping quote and place your order.
If you have any questions regarding shipping, please contact us by email at info@thebushcompany.com.au or by phone +61 (07) 5302 6948.
Damage In Transit
If you or the person responsible for receiving your order does not check that the item has arrived in good condition prior to accepting it, The Bush Company cannot be held responsible for any claim for damage in transit.
When your order shipment arrives, it is essential that you check it thoroughly for any signs of damage before signing to accept the shipment. This means checking the exterior box and if there are any signs of damage externally then the box should be opened, and the product examined for any signs of damage to the product itself. This needs to be done before you sign anything to say that the item has been received, the driver needs to wait until you are satisfied. If you are not satisfied with the condition of the item, then you are entitled to refuse delivery and the courier will have to return the product to us.
If you do not follow this procedure and it turns out that the item has been damaged in transit, then there is no way for The Bush Company to claim on the freight insurance to cover any damage. If you sign anything and are not satisfied you must ensure that this is noted by the driver in writing and obtain a copy that is signed by the driver.
Merchandise Shipping
Our merchandise range (T-shirts, Hoodies, Hats, Mugs etc.) are print on demand products and have different shipping policies associated with them. Please view the 'Delivery & Returns' tab on each product for more information.
Stacked with features

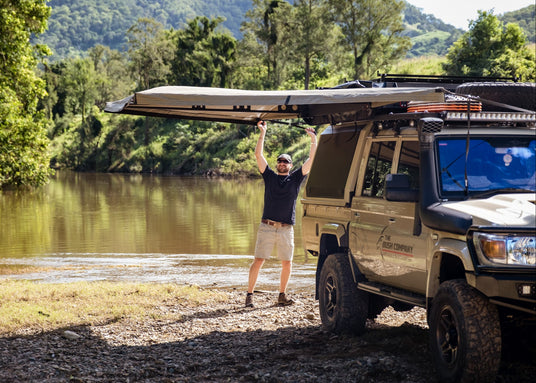

SET UP IN 30 SECONDS
Set up in under 30 seconds. Our stainless steel heavy-duty headstocks retain the stainless steel hinge pin shafts for the arms, so they swing out smoothly and you can kick back faster.
180° FREESTANDING COVERAGE
No poles means all the shade can be used in the best possible way. 8.53m² of shade coverage offers protection on even the hottest and brightest of days.
NO SEAMS, NO LEAKS
Seams are the most common leakage point on awnings. Our unique ultra wide canvas ream means that we can create our 180XT Max Freestanding awnings with no seams
BUILT TOUGH
Engineered for the extreme: our B-Tech® Alloy frame and extrusions, fully gusseted main arms and stainless steel heavy-duty headstocks are built tough, providing ultimate strength and durability. Invest once, and own an awning built to last.
WITHSTAND WILD WEATHER
Built to take on extreme conditions, our awning stands tall on its own—even when the weather turns wild. But for those extra windy days, we’ll keep you grounded with included guy ropes and pegs. Trust us—your car’s more likely to lift off than this beast.
NEXT LEVEL ACCESSORIES
Create your own space with privacy and protection from the elements thanks to the freestanding awning wall-kit accessories. Detachable walls are easy to use and turn your outdoor space into a cozy living room with a stunning view.
180 XT MAX Awning VIDEOS
View all-
-
The Bush Company Journey
The Bush Company Rooftop tents & awnings have had a long history to become the best on the market.
-
The Ultimate Lightweight Touring tent - LX27
The LX27 is the ultimate lightweight tent designed to still be the perfect touring companion.
-
The ideal 2.8L touring rig - 79 Series
This 79 series is kitted out with our TX27 Max, A 270XT Max freestanding awning and our Outhouse shower tent.
Not sure which one is right for you?
Compare Our Freestanding Awnings
| Facet | |||
|---|---|---|---|
| Price | |||
| Price | $2,950.00
Unit price
/ Unavailable
| $2,550.00
Unit price
/ Unavailable
| $2,450.00
Unit price
/ Unavailable
|
| Product variants | |||
| Product variants | 270 XT MAX Awning Options
| 270 XT Awning Option
| - |
| Weight | |||
| Weight | |||
| Awning Coverage | |||
| Awning Coverage | |||
| Pivot Points | |||
| Pivot Points | |||
| Minimum Mounting Distance | |||
| Minimum Mounting Distance | |||
FAQS
How much shade does the 180 XT MAX give?
How much shade does the 180 XT MAX give?
8.53m² across a 5.84m span, running straight down the side of your vehicle and keeping the rear clear for barn doors, tailgates and slide-out kitchens.
What makes the 180 XT MAX worth the investment?
What makes the 180 XT MAX worth the investment?
A seamless single panel of 315gsm acrylic-treated polyester ripstop canvas, stainless steel heavy-duty headstocks that retain the stainless steel hinge pin shafts for the arms, fully gusseted B-Tech® Alloy arms and a full modular wall system. It is built as a long-term investment for touring.
What is the canvas made from?
What is the canvas made from?
315gsm acrylic-treated polyester ripstop canvas, cut as a single ultra-wide panel so there is no seam overhead. It is treated against UV, mould and mildew.
Is the 180 XT MAX genuinely freestanding?
Is the 180 XT MAX genuinely freestanding?
Yes. Once mounted, no poles or ground supports are needed: the trussed arms carry their own load across the full 5.84m span. It's rated to 50km/h freestanding and over 90km/h when poled, guyed and pegged down securely. Guy ropes and pegs are included; in windy conditions, use them on the non-trussed arms to prevent upward movement.
How long does the 180 XT MAX take to set up?
How long does the 180 XT MAX take to set up?
Under 30 seconds, one person. Unzip the bag, swing the arms out, then secure the tension straps on the outer arms to the vehicle to tension the canvas.
How much does the 180 XT MAX Awning weigh?
How much does the 180 XT MAX Awning weigh?
26.5kg. The heavier canvas and stronger frame are a deliberate choice for long-term touring. As with any roof-mounted gear, check the total against your vehicle's dynamic roof load rating.
Is the canvas waterproof?
Is the canvas waterproof?
The canvas is tested to a waterhead of more than 1000mm (ISO 811:1981) and is seamless overhead, so there is no stitch line above you to leak. Wet the awning down before first use so the core-spun thread swells and seals the stitching at the frame.
What roof racks is the 180 XT MAX compatible with?
What roof racks is the 180 XT MAX compatible with?
Most roof racks, platform racks and load bars, provided there is at least 1.8m between the two headstock brackets. An L bracket must be mounted to the stainless steel headstock at each end of the awning; the third bracket is only needed on load bars or a roof rack (not a rooftop tent) and normally goes towards the centre. Some rack systems need additional mounting hardware. Always check your rack's dynamic load rating.
Can I install it myself?
Can I install it myself?
Yes — fitting instructions and install videos are available on our Guides & Instructions page. You'll want a second person for the 26.5kg lift. Our stockists can also fit it for you.
Can I add walls to the 180 XT MAX?
Can I add walls to the 180 XT MAX?
Yes. A 50mm strip of genuine Velcro® brand loop runs the entire length of the valance around the outside edge of the awning, rated to hold 3kg per 50mm. It takes the 180 XT MAX Wall Kit and the universal canvas and mesh walls for a fully enclosed room.
Will it work with a rooftop tent?
Will it work with a rooftop tent?
Yes — it mounts alongside AX27, LX27 Gen 2, TX27 and TX27 MAX rooftop tents using the optional Awning-to-Tent bracket set.
Should I buy the 180 XT MAX or the 270 XT MAX Awning Mk2?
Should I buy the 180 XT MAX or the 270 XT MAX Awning Mk2?
The 180 gives 8.53m² of straight-line shade down one side at 26.5kg, with a seamless panel and clear rear access. The 270 XT MAX gives 12.2m² wrapping around the rear at 33.5kg. Both need at least 1.8m between the headstock brackets; the 270 XT Awning Mk2 needs only 1.1m.
What warranty comes with the 180 XT MAX Awning?
What warranty comes with the 180 XT MAX Awning?
2 years, conditional, backed by The Bush Company's online support centre and Australian-based team.
How do I install it? (video)
How do I install it? (video)
A copy of the fitting instructions for The Bush Company awnings is available for download here.
The Bush Company or one of our stockists can install your awning, but if you choose to install the awning yourself please make sure that you have done the due diligence to ensure that it does not create any safety issues. Please also ensure you follow all standard safety precautions when undertaking the install.
You may find it useful to watch the following videos:
